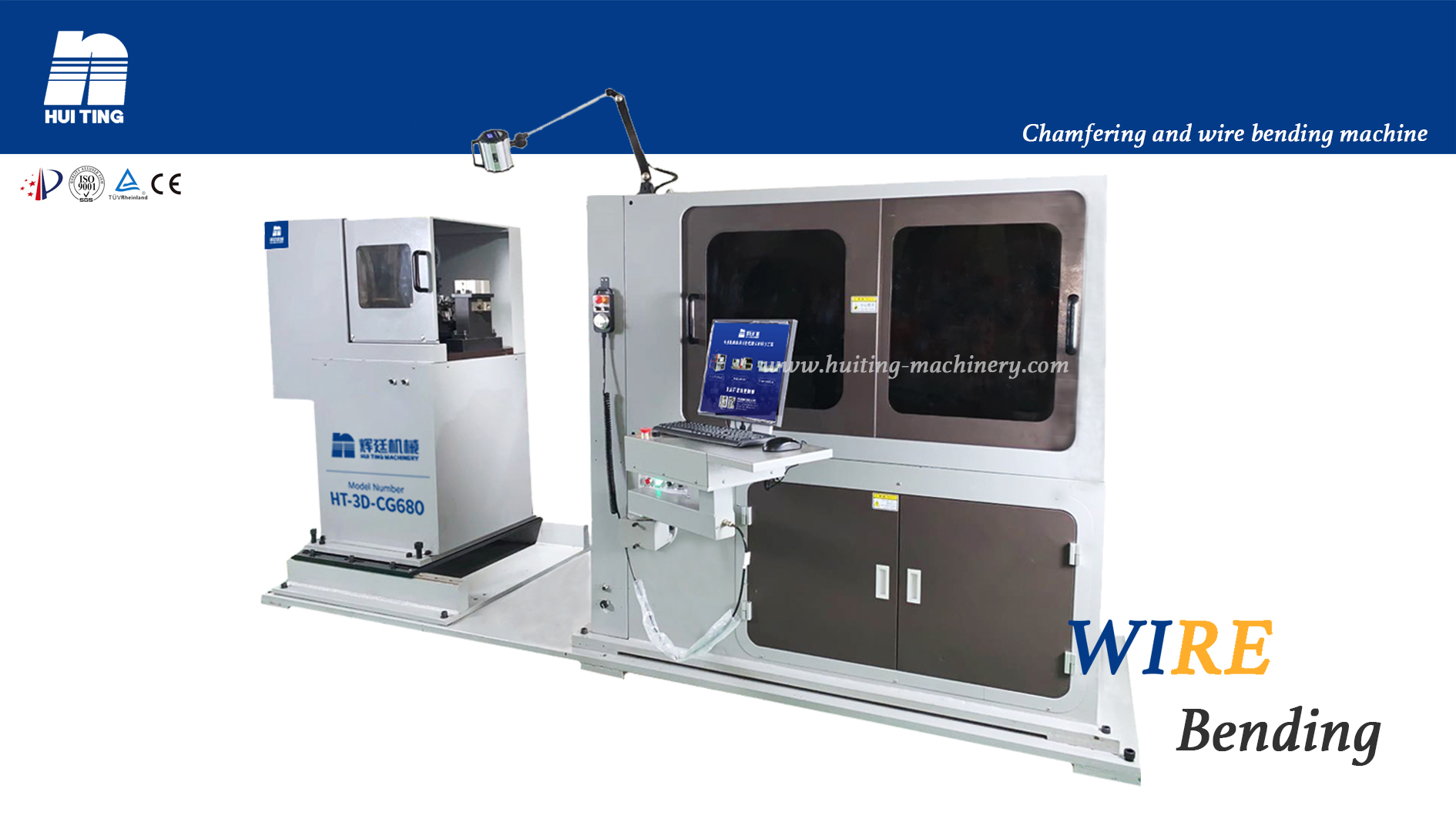

INTEGRATED CNC CHAMFERING GROOVING AND WIRE BENDING MACHINE
TOP 1 Brand wire bending machines in CHINA
|
Model No. |
HT-3D-CG680 |
|
|
Number of axis |
6 |
|
|
Wire Size |
Φ3.0~8.0mm |
|
|
Accuracy |
≤ 0.02mm |
|
|
Number of feeding rollers |
3 Pairs |
|
|
All servo motor driven |
✓ |
|
|
Wire feeding Accuracy |
300mm ± 0.1 |
|
|
Input Power |
380V/420V/440V |
|
|
Weight of machine |
3800 kgs |
|
|
Dimension of machine |
4350*2250*2070mm |
|
|
The Max. load capacity of the decoiler |
2000 kgs |
|
|
Weight of decoiler |
1500 kgs |
|
|
Dimension of decoiler |
2400*2200*900mm |
|
|
Intergrates with the wire feeding, straightening,bending,cutting and chamfering grooving. |
||
Features:
1.It is for steel/stainless/ wire diameter from 3mm to 8mm.
2.With 6 axis 3D wire bending function, the option of chamfering, end forming, double head bending as your choice.
3.With remote function, PAD / Mobile phone / PC monitoring production by camera.
4.Auto uncoil, straighten, feeding, bending, cutting multi-function 3D CNC Steel Wire Bending Machine.
5.High precision;High efficiency:High durability;Full automatic;Easy to operate;Multiple applicable fields.
 |
- While focusing on high efficiency, we also take economic costs into consideration. Our machinesconsume on average over 30% less electricity compared to those of our competitors.
- Standardized assembly processes and precision machining equipment ensure that the accuracy ofour machines can be controlled within 0.02mm and maintain good stability.
|
Wire Diameter |
Wire Feeder |
Straightening |
Bending |
Cutting |
Chamfering |
Model |
|
Φ3.0~8.0mm |
Yes |
Yes |
Yes |
Yes |
Yes |
HT-3D-CG680 |
- All the machines are designed by ourselves, and we have obtained 30+ CHINA patents.
- ISO9001 and ISO45001 quality system are strictly followed.
- 40+ software rights are acquired.
- CE compliance is applied to all our machines.
- We are 24 hours & 365 days online.
- If you have any problems with the use of the machine, we will feed back your problems with the machine within 24 hours and provide a solution within 48 hours.
- We will provide the installation instructions for this machine. Guide to machine maintenance Common faults of machines are introduced.
- Online training videos of machine, etc
The documents we provided:
Don't hesitate to place your order. Let's move forward together. Our machines will make your production easier.
